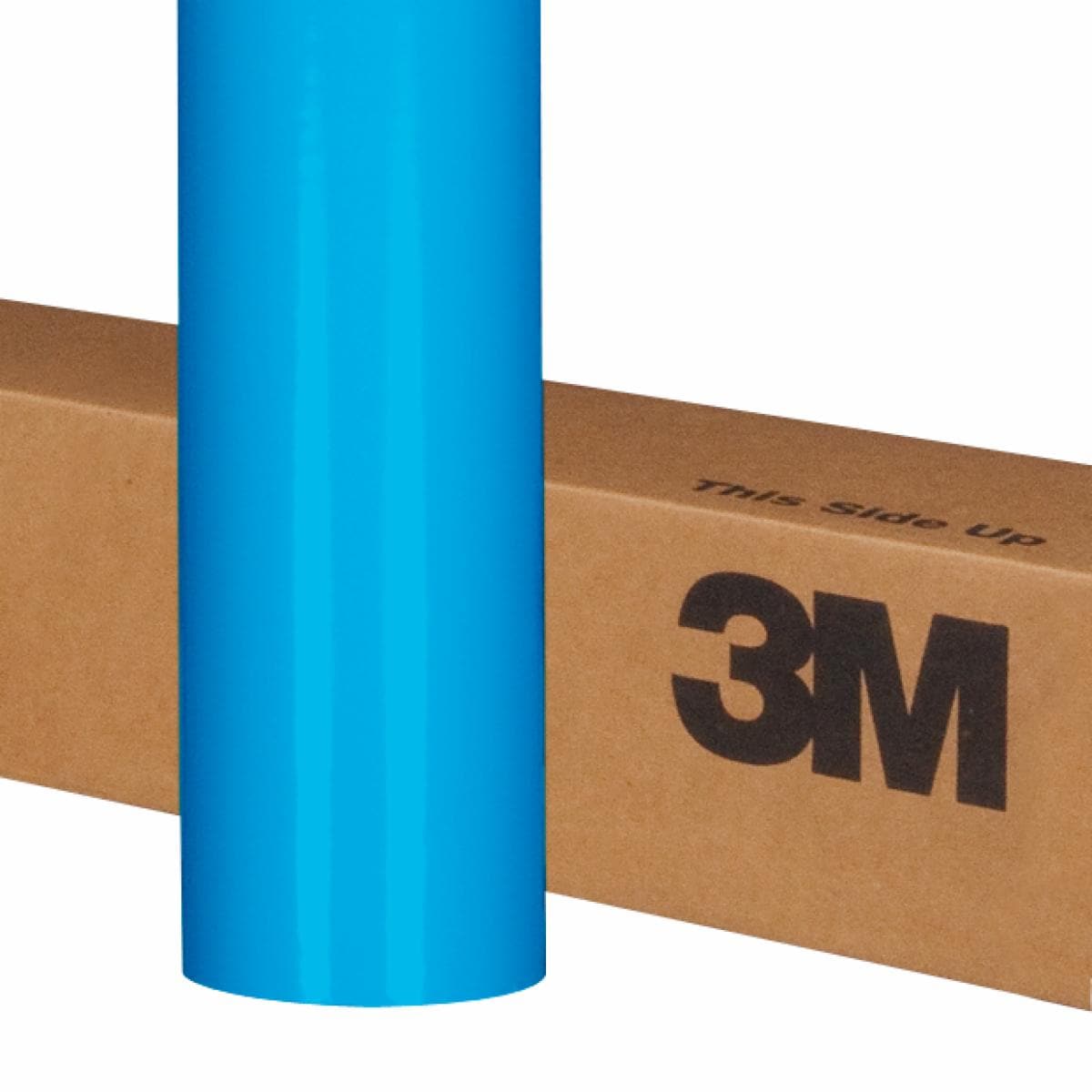

3M™ Controltac™ Graphic Film with Comply™ Adhesive 180mC-77, Peacock Blue, 48 in x 50 yd, 1 Roll/Case
- 3M ID 7100174974
Details
Highlights
- 2 mil / 50 um cast vinyl opaque film with micro Comply™ Adhesive has non-visible air release channels for fast and easy, bubble-free graphic installations
- Great for graphic applications for commercial fleet vehicles, rail cars, watercraft above the static water line, OEM Labels, signage, displays, and exterior facades
- Available in over 80 standard colors (including metallic) as well as the ability to create customized colors
- Pressure-activated adhesive with Controltac™ Features for easy sliding, tacking, snap-up and repositioning
- Adhesive is removable with heat. Adheres to materials such as: ABS resins, aluminum (ACM/ACP), glass, paint, and more
- Conforms to flat surfaces, with and without rivets, simple curves, compound curves and corrugations
- Can be screen printed or electronically cut
- Uses a lay flat polyethylene coated paper liner
- Backed by the comprehensive 3M™ MCS™ Warranty, up to 7 years. For additional durability and weathering protection, can be used with 3M recommended overlaminates. Visit 3mgraphics.com/warranties for more information
Use this 2 mil film to screen print large, long term graphics. It has pressure activated adhesive and 3M Comply™ Adhesive feature for easier installation of fleet graphics, signs, emblems and more.
Specifications
| Adhesive Controltac/Comply | Comply™ |
| Adhesive Type | Solvent Acrylic |
| Application Method | Dry |
| Application Surface | Flat, Compound Curve, Flat with Rivets, Simple Curve |
| Brands | Controltac™ |
| Color Effect | Bright |
| Color Palette | Blue |
| Converting Process | Screenprinting |
| Core Size (Metric) | 76.2 mm |
| Factory ISO Certification | No ISO Certification information available |
| Features | Air Release Adhesive, Pressure-activated Adhesive |
| Film Thickness (Metric) | 50 Micron |
| Film Type | PVC |
| Flexible Substrate | No |
| Interior/Exterior | Exterior, Interior |
| Liner Material | PE Coated Kraft Paper |
| Maximum Service Temperature (Celsius) | 80 ℃ |
| Minimum Application Temperature (Celsius) | 10 ℃ |
| Minimum Service Temperature (Celsius) | -30 ℃ |
| Opacity | Opaque |
| Product Code | 180mC-77 |
| Product Color | Peacock Blue |
| Product Series | 180mC |
| Product Usage | Vehicles, Public transport |
| Removability | Removable with Heat |
| Service Life | 5 Year |
| Substrate | Acrylic, Glass, PMMA, ABS, Aluminum |
| Overall Length (Metric) | 45.7 m |
| Overall Width (Metric) | 1520 mm |
